BackgroundΒΆ

Avoid or Shoot needs a background. This code is puts the first image in the background. The first image is 16 x 16 px image at the top. in this case the first image of image bank is white colour image. Of course when you save the file, save it as code.py file:

1
2
3
image_bank_1 = stage.Bank.from_bmp16("avoid_or_shoot.bmp")

background = stage.Grid(image_bank_1, 10, 8)

As soon as you save the file onto the PyBadge, the screen should flash and you should see something like:

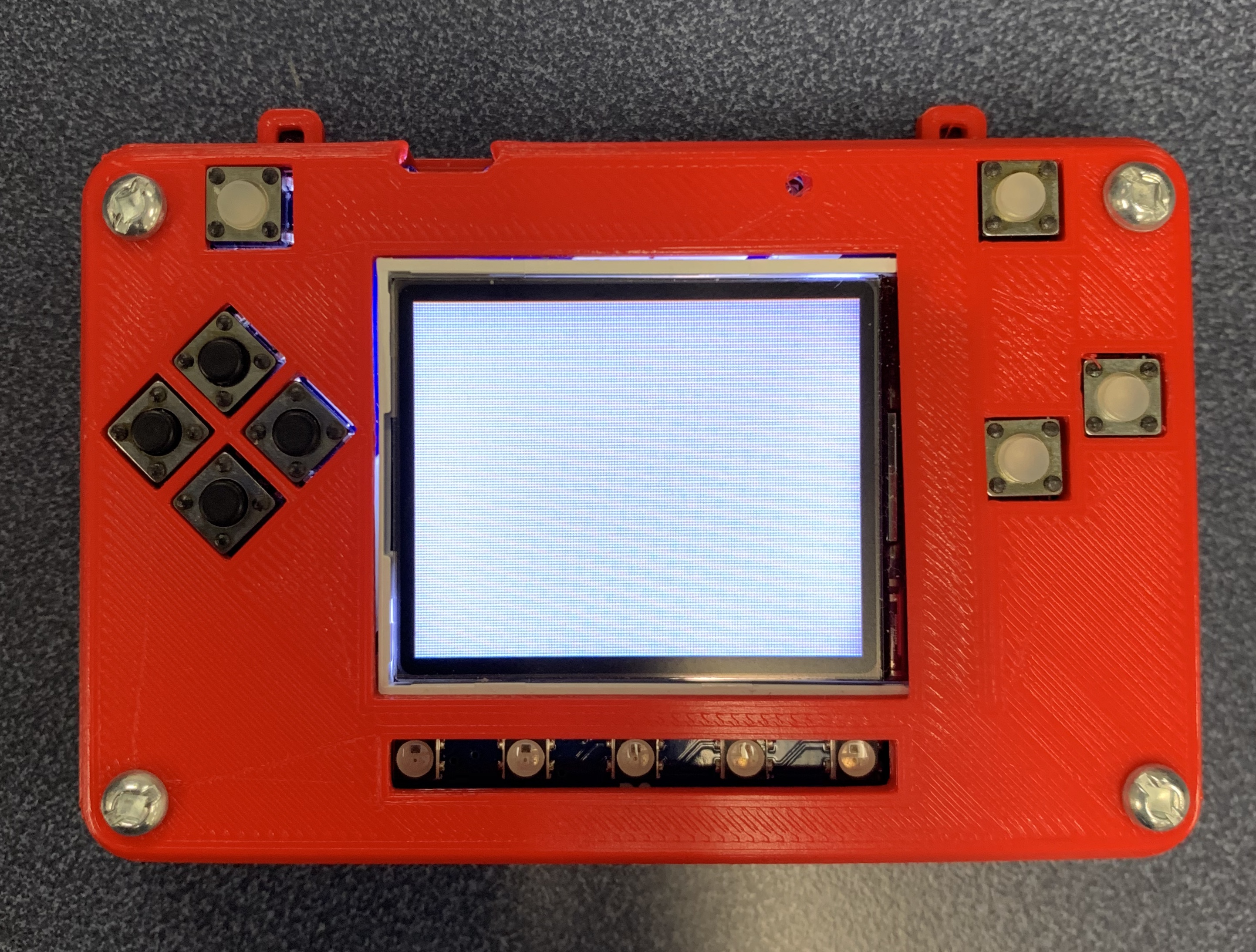

White background

White background on PyBadg

This code will not work. The code above has a lot to do. Here is a better version that shows the background. You can see that you called the main() function. This is common in python code but usually not visible in CircuitPython. I am including it because by breaking the code into different functions to match different scenes, eventually will be really helpful.

1
2
3
4
5
6
7
for y_location in range(8):
    for x_location in range(16):
        if y_location == 1:
            tile_picked = random.randint(1, 3)
        else:
            tile_picked = random.randint(1, 1)
        background.tile(x_location, y_location, tile_picked)

As soon as you save the file onto the PyBadge, the screen should flash and you should see something like:

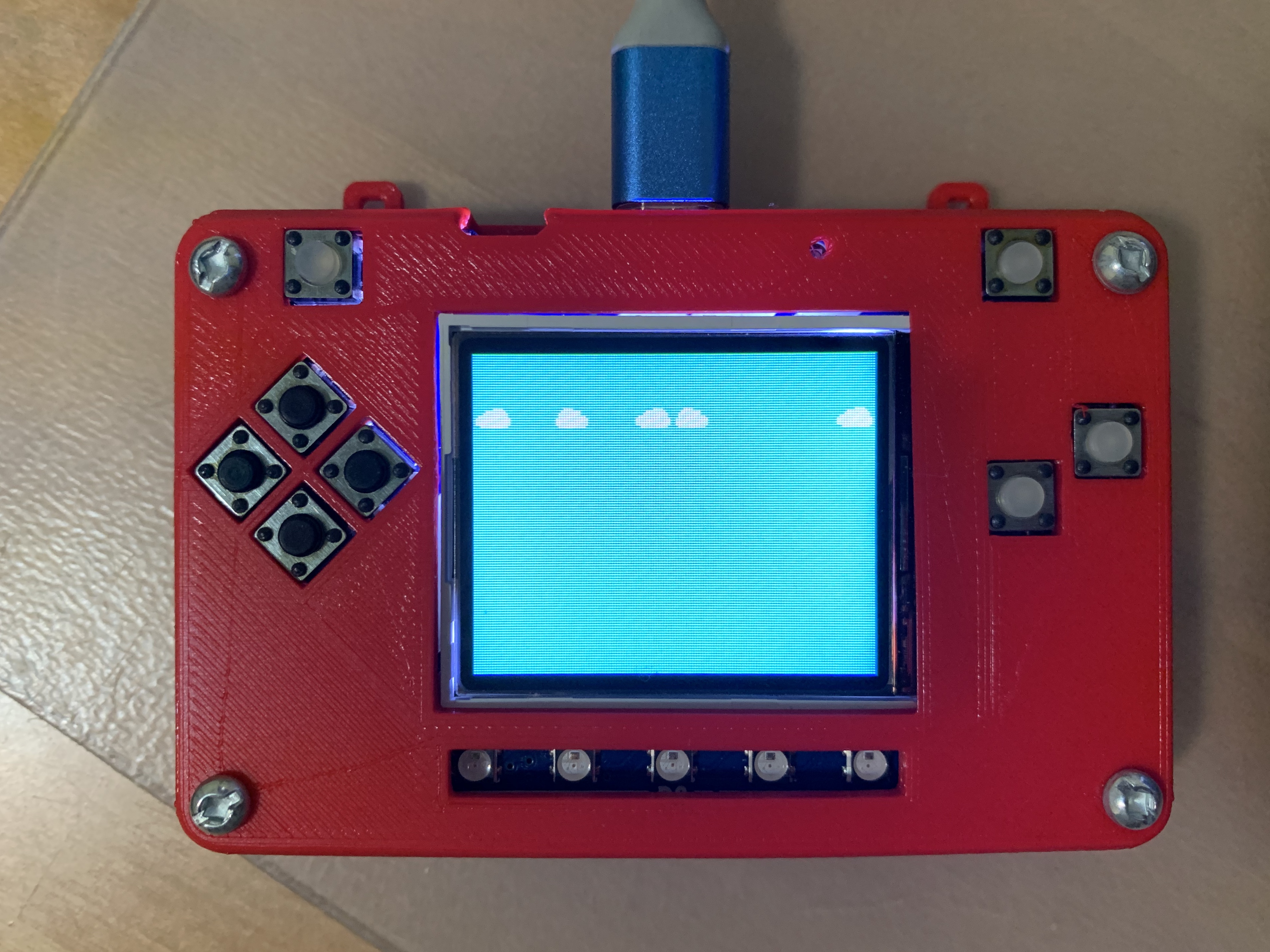

Game background

Game Background on PyBadge

This codes replace the background of pybadge with another 16x16 image. pybadge contains 16 images on the x-axis and 8 image on the y-axis in the image bank. It fills that background with a for loop. When the second image is filled on the y-axis, it randomly fills the second to fourth images in the image bank.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
#!/usr/bin/env python3

# Created by : Jay Lee
# Created on : Jan 2020
# This program display background of pybadge

import ugame
import stage
import random


def main():
    # this function display background of pybadge
    image_bank_1 = stage.Bank.from_bmp16("avoid_or_shoot.bmp")
    background = stage.Grid(image_bank_1, 10, 8)

    for y_location in range(8):
        for x_location in range(16):
            if y_location == 1:
                tile_picked = random.randint(1, 3)
            else:
                tile_picked = random.randint(1, 1)
            background.tile(x_location, y_location, tile_picked)

    game = stage.Stage(ugame.display, 60)
    game.layers = [background]
    game.render_block()

    while True:
        pass


if __name__ == "__main__":
    main()

This is the basis of the background function.
